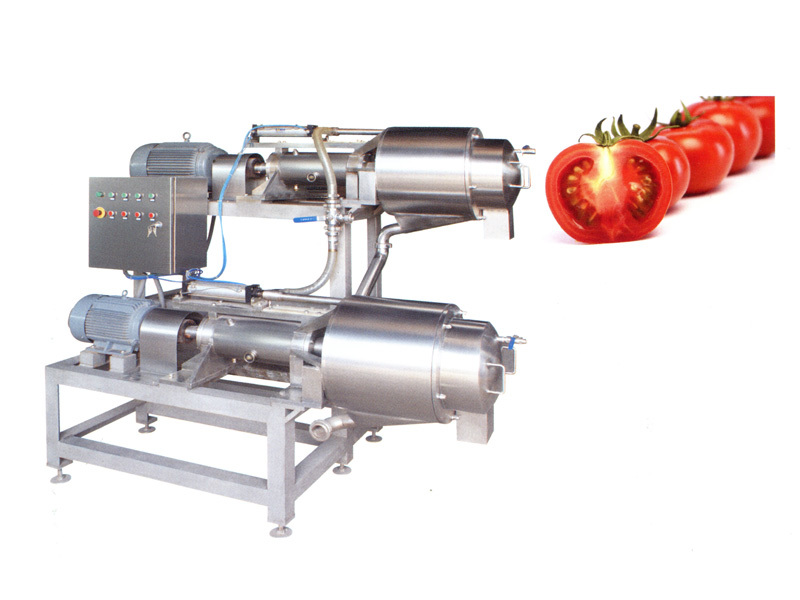

DJJ-1 double channel beater
Keywords: vacuum concentration equipment, stainless steel stamping centrifugal pump
Classification:
Product Description
Apply:
The beater is used in the assembly line of tomato paste production. The machine can separate the meat and juice of tomatoes from the skin and seeds of tomatoes, and the meat and juice are used for the processing of the next process, and the skins and seeds are processed as waste.
How it works:
The tomato from the previous process enters the first material barrel, the main shaft drives the impeller to rotate at high speed, the material is driven by the impeller and the screen friction and extrusion, so that the tomato meat, juice and skin, seeds are separated, the meat and juice enter the second material barrel through the small hole on the screen, the skin and seeds are pushed to the shaft end through the slag discharge port discharge, the structure of the second material barrel is the same as the first channel, but the diameter of the second screen mesh is smaller, and the spindle speed is higher.
Equipment composition and technical indicators:
The equipment mainly includes:
Spindle parts, automatic cleaning parts, screen parts, water systems, electrical systems.
The spindle components mainly include bearing housing and impeller components.
| production capacity | Total power | atmospheric pressure | Hydraulic | Total device weight |
| 20T/h | 48.5kw | 0.6Mpa | 0.2Mpa | 3T |
| Shaft speed | Screen aperture | Form factor |
| The first pass is 980rpm, and the second lane is 1470rpm | The first channel is φ1.2mm or φ1.4mm, and the second channel is φ0.6mm or φ0.8mm | 2590*1140*1900mm |
